XpressReal T3
Tech Specs

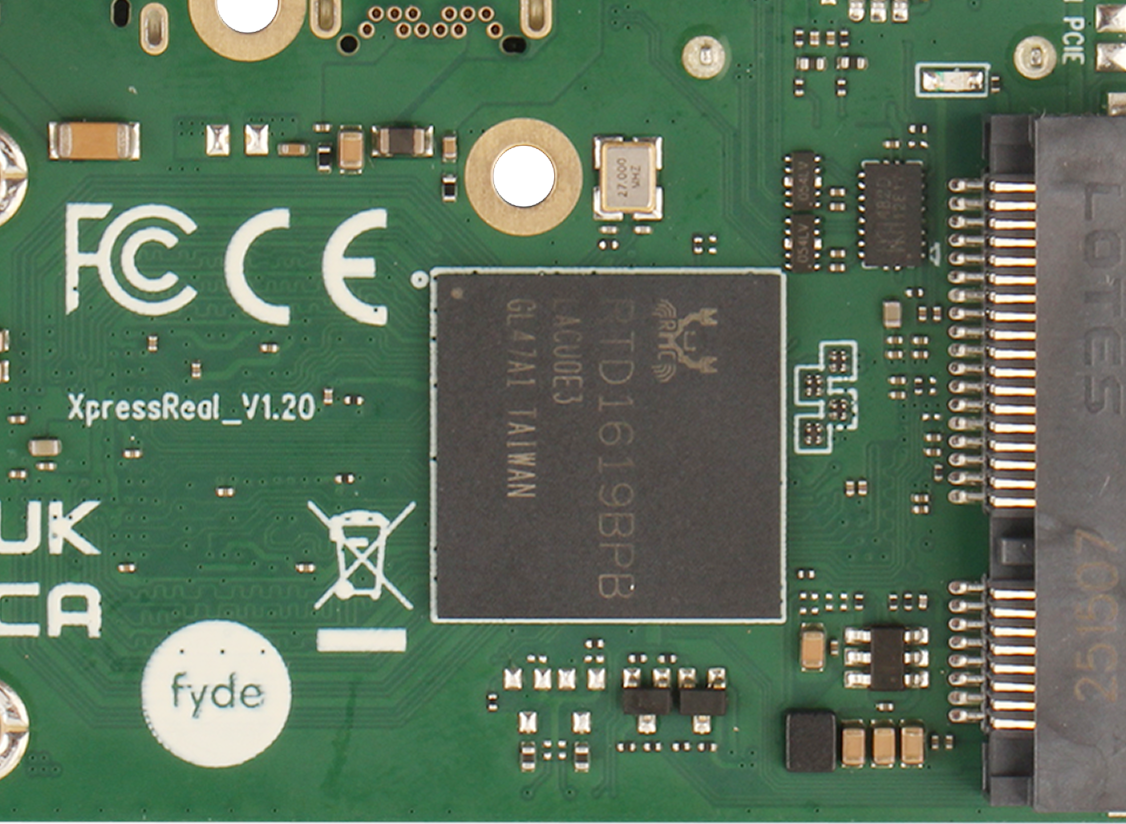

Processing
System on Chip
Realtek RTD1619B
Neural Processing Unit
1.6 TOPs computing power
INT4/INT8/INT16, FP16/BF16, TF32 precision support
CPU
Quad-core ARM Cortex-A55
Up to 1.7GHz
GPU
ARM Mali-G57 MP1
Vulkan 1.1, OpenGL ES 3.2, OpenCL 2.0

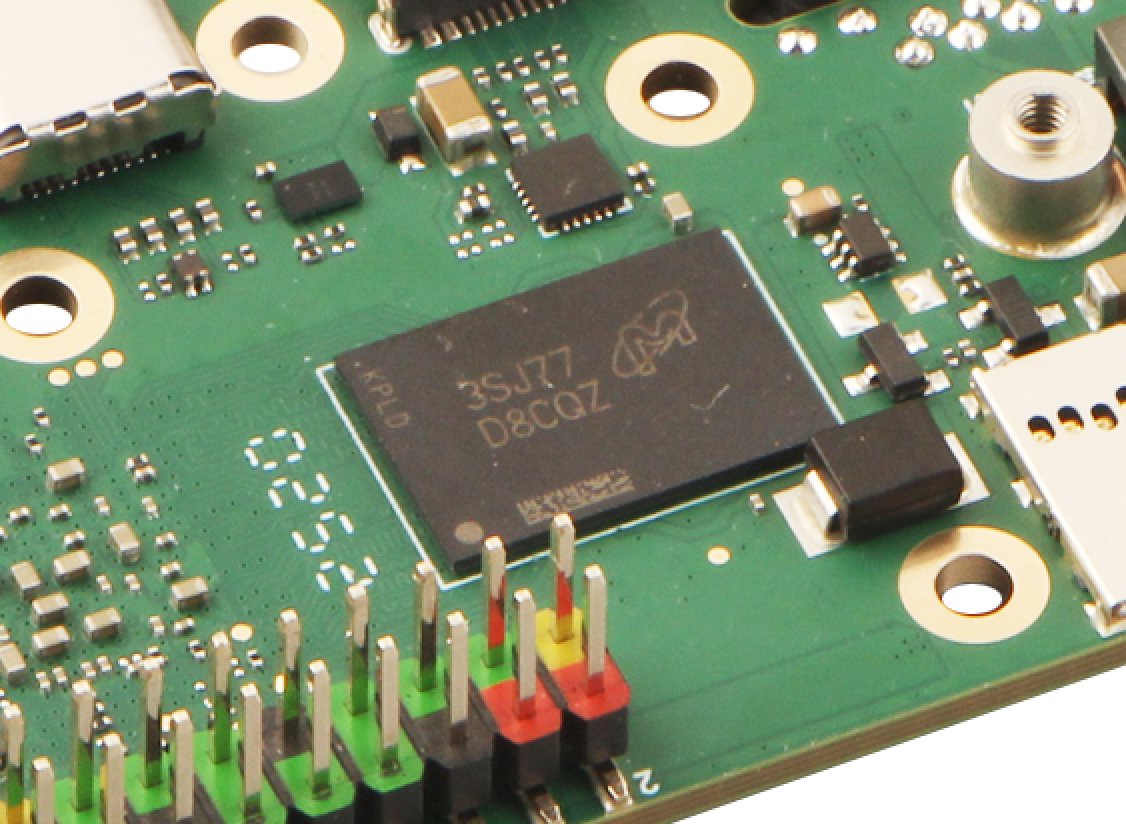

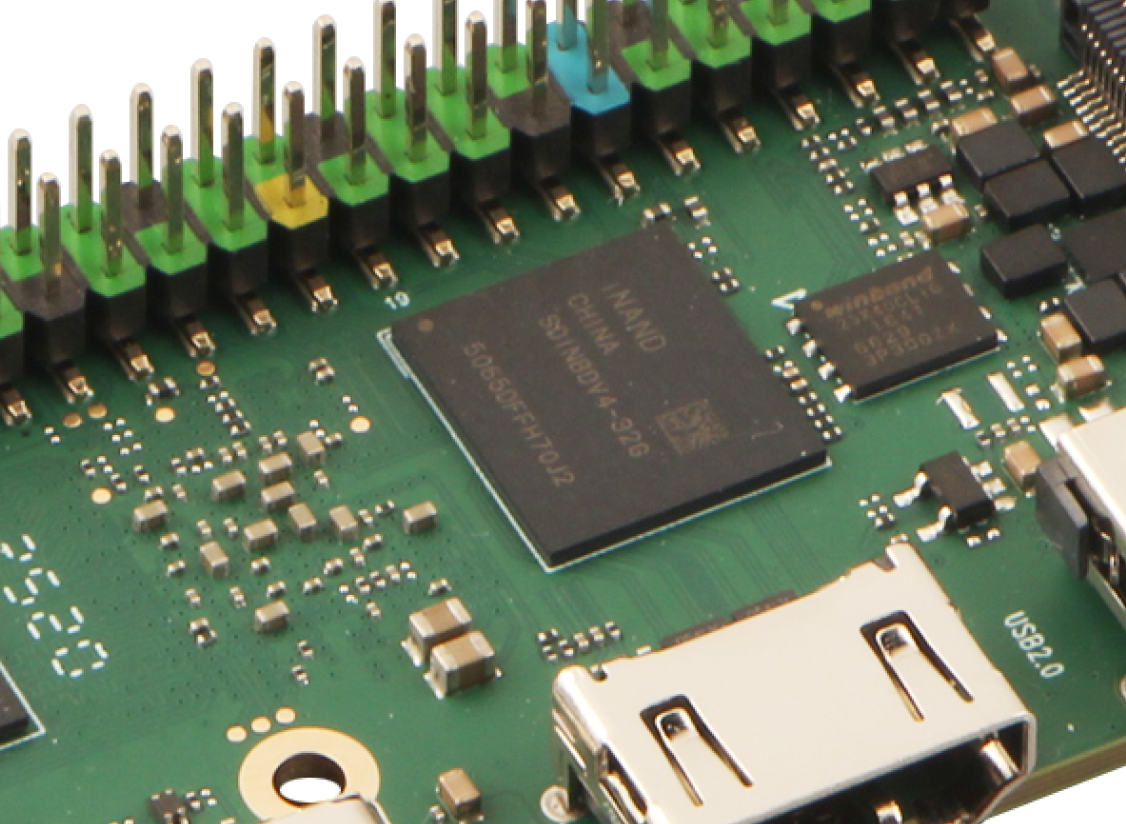

Memory & Storage
Memory
4GB LPDDR4 3200Mbps
32-bit memory bus
Boot Storage
4Mbit SPI Flash
Main Storage
32GB eMMC onboard
Expandable Storage
microSD card slot, SD 3.0 standard
M.2 NVMe SSD slot (M-Key)
PCIe Gen2 x1 lane, supports 2280 form factor
Display & Media
Video Output
1× HDMI 2.1a port
Maximum resolution: 4K@60Hz
HDMI CEC, ARC/eARC, HDCP support
Hardware Decoder
Up to 4K@60fps
AV1, H.265, H.264, VP9, VP8, H.263, MPEG-4, MPEG-2
Hardware Encoder
Up to 1080p@60fps
H.265, H.264, H.263
Connectivity
USB Ports
1× USB Type-A 2.0
480Mbps, 500mA power output
1× USB Type-C 3.2 Gen1
5Gbps, dual role capability
Ethernet
1× Gigabit RJ45 port
10/100/1000 Mbps speeds
Built-in passive PoE (24V 1A)
Simplified power and connectivity
Wireless
WIFI 6 + BT 5.4
Built-in nano-SIM card slot
Mini PCIe interface
Supports AP and 4G LTE modules
40-Pin GPIO Header
Power input/output pins
I2C, SPI, UART, PWM signals available
Software
Multiple operating system options
Operating Systems
Yocto SDK
Embedded development platform
openFyde/FydeOS
Chromium OS based OS
Debian Linux
Stable Linux distributions
Armbian
Linux for ARM development boards
Android
AOSP image
OpenWrt
Linux targeting embedded devices
Home Assistant OS
Out of the Box Home Assistant service distributed as OS image
Development Resources
Documentation
Complete hardware and software documentation
Open Source
Full access to drivers and SDK
Updates
Regular firmware and OS updates
Community
Active developer community
Support
For support please see the hardware documentation and post questions to our community forum.
